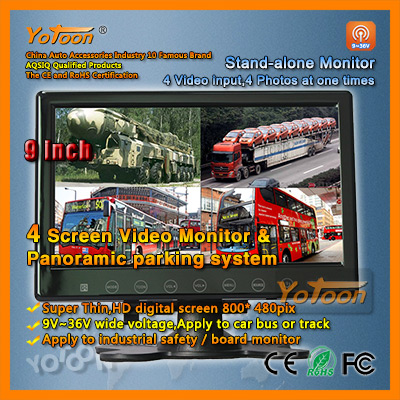

9 inch 4 Screen Video Monitor Panoramic Parking System
Product NO.:YT-9101F        Viewed:0
Recommended Level:

Function

7 inch car monitor touch button slim 2-way video input
For: big trucks big double-decker bus passenger subway card security monitoring system monitoring display industrial display monitor car monitor microscope
Industrial grade LCD display, power supply: DC 12V ~ 36V (trolley carts can be used)

Detailed Product Description

9 inch car monitor / 4 screen video monitor / Panoramic parking system / car security system
9 inch car monitor / 4 screen video monitor / Panoramic parking system / car security system

9-inch four-screen LCD monitor

1 Display size: 9 inch 16: 9 TFT-LCD

2 Best Resolution: 800 * 480

3 Contrast: 400: 1

4 Brightness: 250cd / ㎡

5 overall response time: <= 12ms

6 :( viewing angle Horizontal: 160 degrees / Vertical: 160 degrees)

7 refresh rate: 60-75Hz

8 using CPT LED LCD screen.

9 Color System: PAL NTSC.

10. backlight: LED.

11 Dimensions: 180125X28MM.

12 Menu Language: English Optional.

Optional features: Quad Video

◇ signal input interface: BNC1 / BNC2 / BNC3 / BNC4

Image rotation: support

Power Supply: DC 12V ~ 36V (trolley carts can be used)



Purpose: safety monitoring system monitor display industrial display monitor car monitor microscope

All products using industrial-grade display production, life of more than 10 years





9 inch car monitor display four split

Product details:

1 supports 4 camera input four view selection

2.7 kinds of languages ​​OSD display

3. PAL / NTSC standard optional mirror / normal image optional

4 When reverse gear is engaged automatically open

5 Trigger priority: CAM CAM 1> 2 of> CAM3> CAM 4

6, with the high and low voltage protection and short circuit protection

7.10.1 inches TFT LCD display, 16: 9

8 wide viewing angle (CR> 10) :( Up / Down / Left / Right): 40/40/60/60

9 Resolution: 480 * RGB * 234

10. Color System: PAL / NTSC (optional)

11 Power requirements: 12 ~ 36V DC

12 Power consumption: ≤5W

13 Working temperature: -20 ℃ to 70 ℃

14 Storage temperature: -30 ℃ to 80 ℃
